Lab Assignment 12
METR 2413
Date assigned: April 16, 2004
Due date: April 23, 2004
1) Use the 500 mb height/vorticity analysis to highlight (shade)
the areas of anticyclonic vorticity advection (blue) and cyclonic
vorticty advection (red)
2) Use the 250 mb analysis to highlight (shade) the areas of
convergence aloft (blue) and divergence aloft (red)
The above image illustrates areas of div/conv due to the ageostrophic circulation.
Many
people colored areas of diffluence and confluence as those of divergence and
convergence, which is true only if the speed convergence/divergence agrees with the

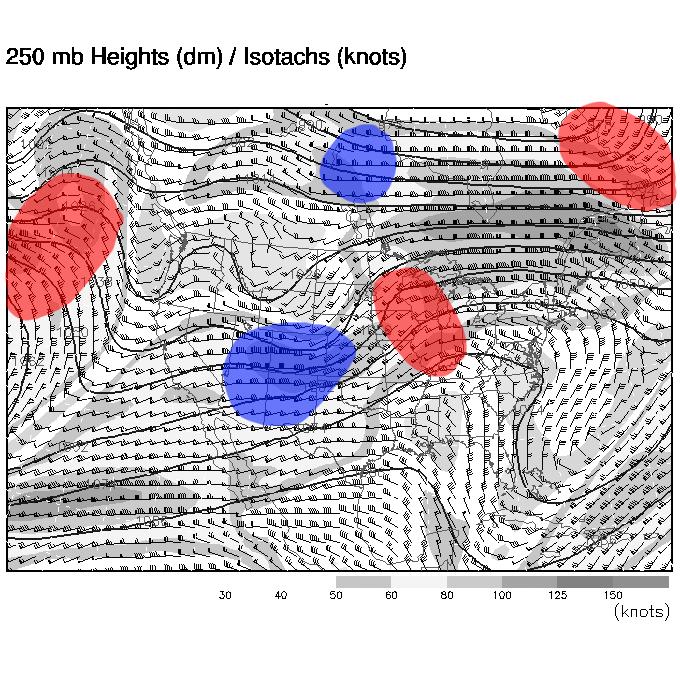

diffluence/confluence. The image below illustrates conv/div when only considering the flow (confluence & diffluence)
