metr2413
Lab Assignment 11
April 2, 2004
Due: April 9, 2004

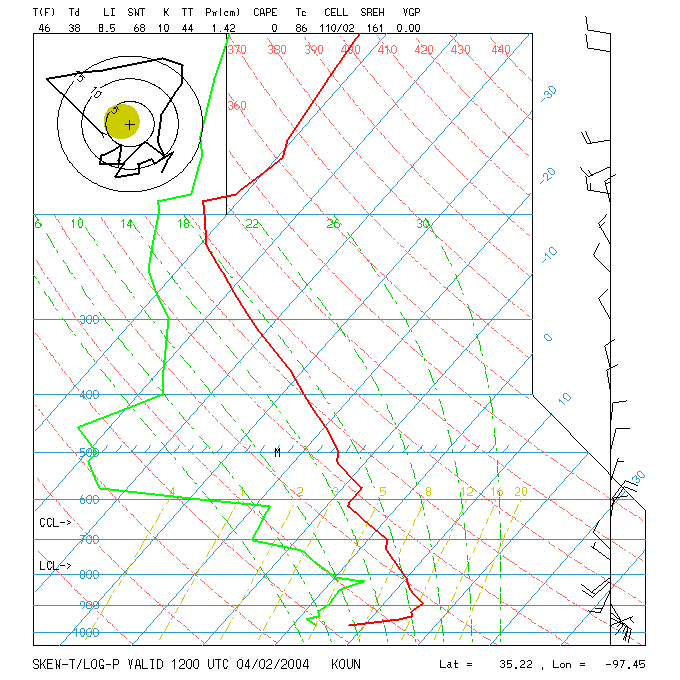

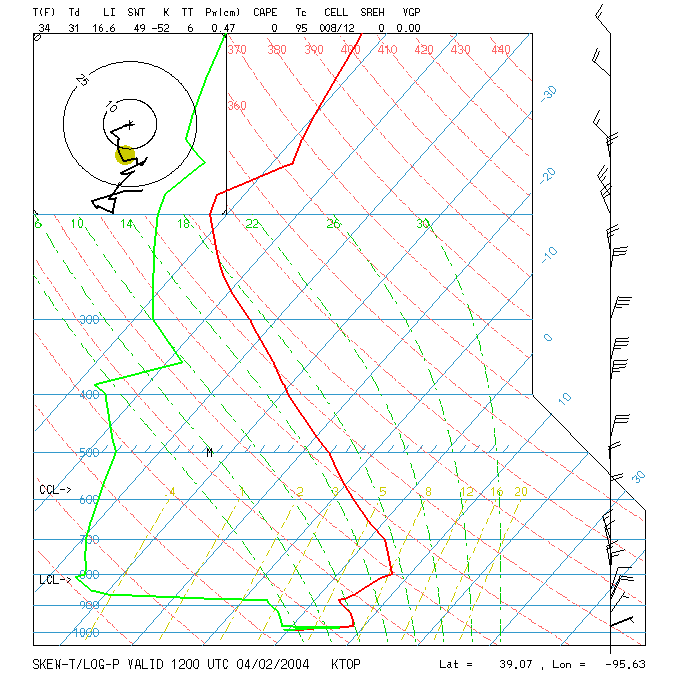

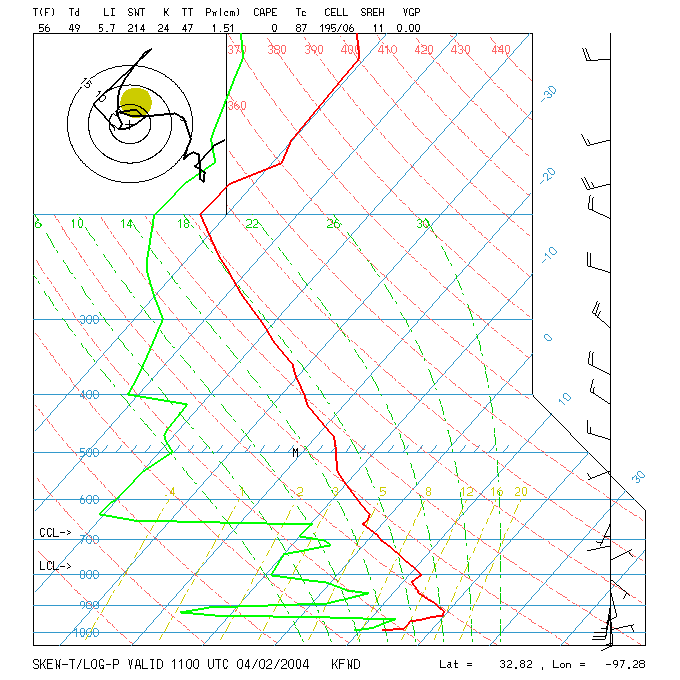

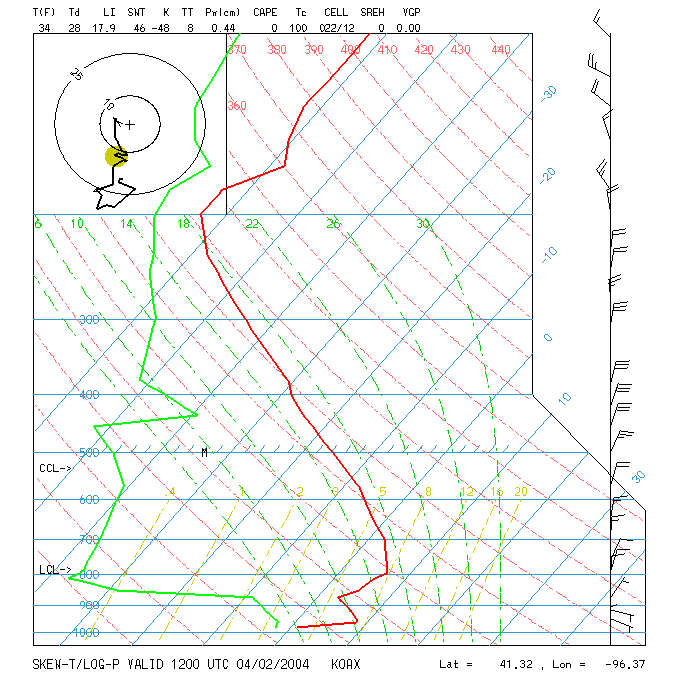

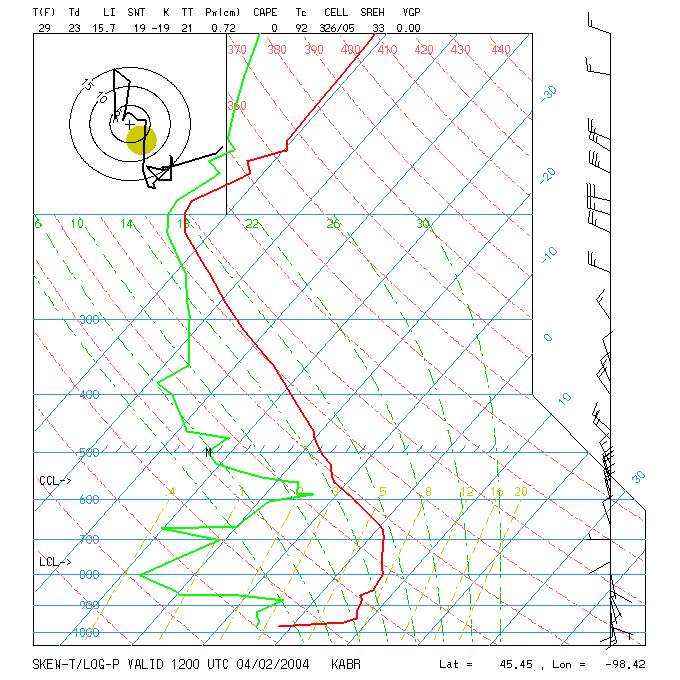

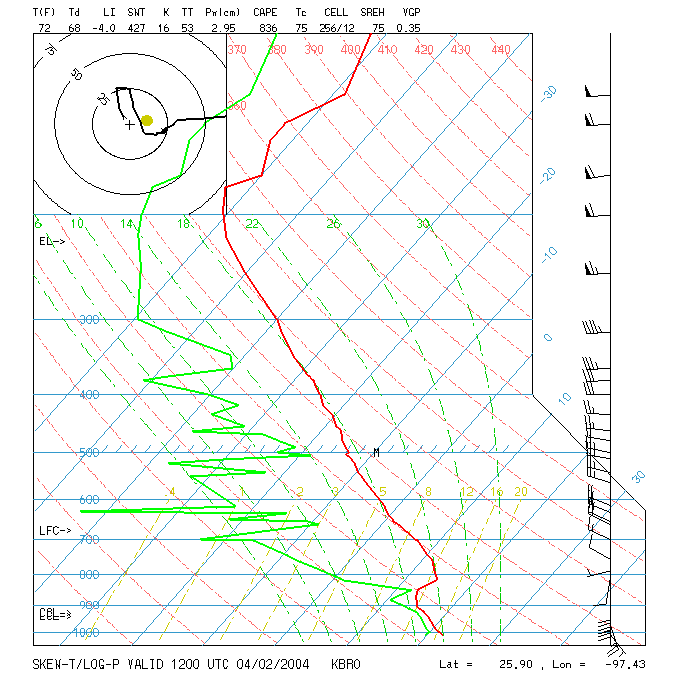

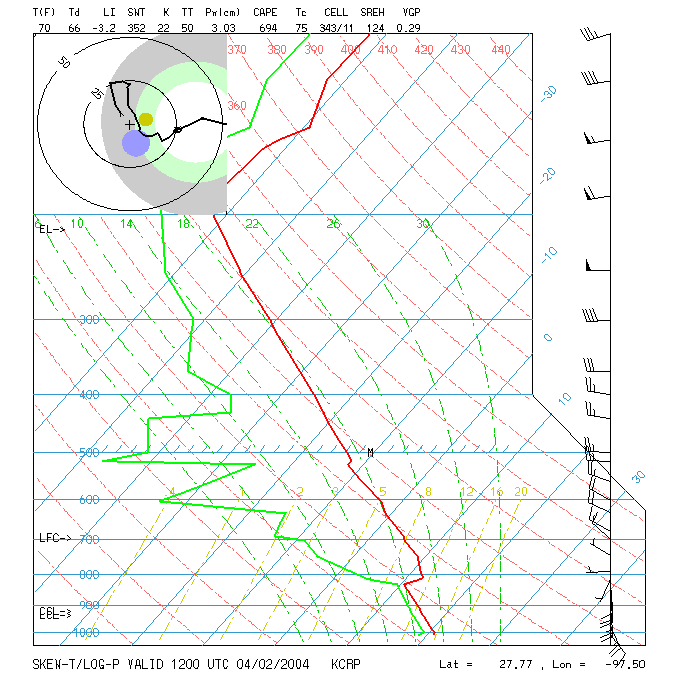

Using upper air soundings from 12Z, April 2, 2004, construct your own
isentropic cross-section from Brownsville, TX to Aberdeen, SD using the
following locations for data points. Remember to read potential temperatures off of the Skew-t/Log-P
diagrams, not atmospheric temperature.
The vertical coordinate will be pressure, in intervals of 100mb.
Plot potential temperature and mixing ratio at each 100mb for each station, then use scalar analysis to
contour the values. For mixing ratio, disregard values above 600mb.
Identify the location of the tropopause on your chart, as well as any fronts that may be present.
